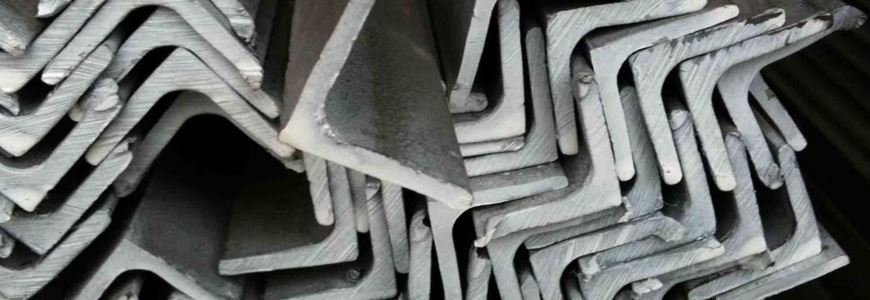

Premium Angle Supplier in India
TradeRiseGlobal stands as India's premier angle supplier, delivering world-class steel angles engineered for excellence. With over a decade of expertise, we specialize in comprehensive angle solutions for critical industrial applications across construction, infrastructure, power generation, automotive, and engineering sectors.
Comprehensive Angle Specifications & Standards
Complete technical specifications for our comprehensive range of industrial angles
Primary Specifications & Standards
| Specification | Details | Applications |
|---|---|---|
| Angle Types | Equal Angles, Unequal Angles, L-Shaped Angles, Perforated Angles | Structural, Industrial, Construction |
| International Standards | ASTM A36, A572, A516, A105, DIN 17100, EN 10025, JIS G3101, BS 4360 | Global Compliance |
| Size Range | 10 mm to 200 mm (Leg Length) | Versatile Applications |
| Wall Thickness | 1.5 mm to 20 mm | Structural Applications |
| Standard Lengths | 1000 mm to 12000 mm, Cut to Length as per requirement | Custom Requirements |
| Forms Available | Hot-rolled, Cold-rolled, Galvanized | Environmental Protection |
| Surface Finish | Mill Finish, Galvanized, Painted, Polished | Aesthetic & Functional |
Standard Angle Sizes & Dimensions
| Size (A x B) | Thickness (mm) | Weight (kg/m) | Cross Section Area (cm²) | Applications |
|---|---|---|---|---|
| 20x20 | 3 | 0.89 | 1.13 | Light Construction |
| 25x25 | 3 | 1.12 | 1.43 | Small Structures |
| 30x30 | 3 | 1.36 | 1.73 | Framework |
| 40x40 | 4 | 2.42 | 3.08 | Building Framework |
| 50x50 | 5 | 3.77 | 4.80 | Structural Support |
| 60x60 | 6 | 5.42 | 6.91 | Heavy Construction |
| 75x75 | 8 | 9.09 | 11.58 | Industrial Framework |
| 100x100 | 10 | 15.04 | 19.16 | Heavy Structural |
Material Grades & Standards
| Material Type | Grades Available | Applications | Standards |
|---|---|---|---|
| Stainless Steel | 304, 304L, 316, 316L, 321, 347, 410, 430 | Corrosion resistance, food industry | ASTM A276, DIN 1.4301 |
| Carbon Steel | ASTM A36, A572, A516, A105 | General construction, structural | ASTM A36, EN S235 |
| Alloy Steel | ASTM A182 F5, F9, F11, F22, F91 | High temperature applications | ASTM A182, ASME SA182 |
| Duplex Steel | S31803, S32205, S32750, S32760 | Offshore, chemical processing | ASTM A790, EN 1.4462 |
| Nickel Alloys | Inconel 600, 625, 718, Monel 400, K500 | Extreme environments | ASTM B564, UNS N06625 |
| Copper Alloy | C101, C102, C110, C122, Cu-Ni 70/30 | Marine applications | ASTM B169, ASTM B111 |
Quality Testing & Certification
| Test Type | Standard | Purpose | Certification |
|---|---|---|---|
| Chemical Analysis | ASTM E415 | Material composition verification | Mill Test Certificate |
| Mechanical Testing | ASTM A370 | Tensile strength, yield strength | Test Certificate |
| Dimensional Inspection | ASTM A6 | Size and tolerance verification | Inspection Certificate |
| Visual Inspection | ASTM A6 | Surface defect detection | Visual Test Report |
| Straightness Test | ASTM A6 | Geometric accuracy | Quality Report |
Our Angle Product Range
Comprehensive selection of angles for every industrial requirement
Equal Angles
Perfect symmetrical angles with equal leg lengths, ideal for balanced structural applications and framework construction.
- Uniform leg dimensions
- Balanced loading capacity
- Standard sizes available
- High structural integrity
Unequal Angles
Specialized angles with different leg lengths, designed for specific load requirements and asymmetric applications.
- Asymmetric design
- Optimized load distribution
- Space-efficient solutions
- Custom configurations
L-Shaped Angles
Versatile L-profile angles suitable for corner connections, edge protection, and architectural detailing applications.
- Corner reinforcement
- Edge protection
- Architectural applications
- Easy installation
Perforated Angles
Weight-optimized angles with strategically placed perforations for applications requiring reduced weight without compromising strength.
- Reduced weight design
- Material optimization
- Custom perforation patterns
- Cost-effective solutions
